Two 2nd generation Akasaka tsuba

The first is an example of the fairly common musashi plains motif with grass and a goose in flight.

7.48 cm H x 0.67 cm T

The goose is at the left and outlines the kozuka ana. The smaller kogai ana is a typical trait of the second generation Tadamasa. The long curved lines on the right are the grass and the irregular figures at 2:00 are the grass seed heads. The scale of the circle at the top of the seppa dai suggests a dew drop, but the moon over the plain does figure in some variations of the musashino motif.

This is a relatively small, thick guard and has the typical fully rounded rim. It has a Sasano hakogaki attributing it to the second generation and rating it kessaku.

Here are some variations on this design by Tadamasa from the literature:

Nidai
Nidai
Atributed to the sandai in Tosogu Yuhin Zufu above, but to the nidai directly by Sasano. See Ekhard Kremmers comments and additional images at the bottom of this post.

Here’s a composite image for easy comparison.

The last guard is the most different. In the first three the figure at ~7:00 appears to be a blade of grass bending to the left. I’m not sure if the fourth is just a further abstraction of that or if it represents some other idea. Musashino is an enduring tsuba motif, and not only within the Akasaka workers.

Akasaka tsuba are known for relatively abstract designs, and the next example tends to confound most viewers on first look.

7.93 cm H x 0.56 cm T

The asymmetrical and in this case “free form” hitsuana are again typical as is the shape of the full maru mimi. The seppa dai here is a bit more pointed toward the top. This guard is accompanied by an NBTHK certificate attributing it to the second generation and describing the motif as a mortar and pestle (suribachi and surikogi). The rim of the mortar bowl is the ellipse at the lower right and the base is merged with the rim. The curvilinear motive at the top is probably a cord attached to the pestle.

The mortar and pestle are associated with the preparation of medicine and food. It also figures in the monkey and crab legend Saru Kani Kassen which is a bit convoluted but does not end well for the monkey.

Another example is here, with a different reading of the same motif.

These are the only two examples of this design I can think of, regardless of school. As Dr. Torigoye notes it is a modern idea, one of many created in iron by the Akasaka masters.

Update: Additional information on the third musashino tsuba above has been provided by Eckhard Kremers. The following images are his and are much more revealing than the above. Please see his full text regarding this tsuba in the comments section below.

7.9 cm H x 0.7 cm T. provided by Ekhard Kremers
Akasaka nidai Tadamasa. provided by Ekhard Kremers

While the caption of the photo from Sasano-sensei’s study group Tosogu Yuhin Zufu attributes the tsuba to the sandai, his personal attribution as shown above is to the second generation.

Interestingly, the walls of the sukashi show clear chisel marks rather than filing, which Eckard points out in his comment below indicates an early date.

provided by Ekhard Kremers
provided by Ekhard Kremers
provided by Ekhard Kremers

The composition of this example is also different from the first three examples, introducing a rotation of the elements as demonstrated here:

provided by Ekhard Kremers

Taken together as Eckhard writes in the comments below, this is likely the earliest example of the group.

Additional Update: I took another look at inside the sukashi of the first tsuba:

Inside view of the first tsuba at the top of this post. Photo Tsubakansho

There’s a bit more rust on this example, but looking all around under magnification I see no signs of a chiseled finish to the walls. I also don’t see file marks, so unknown if this is scraped or filed to finish.

For completeness, here is a look at the hakogaki for that first tsuba from the top of the post:

photo Tsubakansho

Hopefully jumping back to the third and then the first tsuba in the post is not too confusing.

Unfinished business

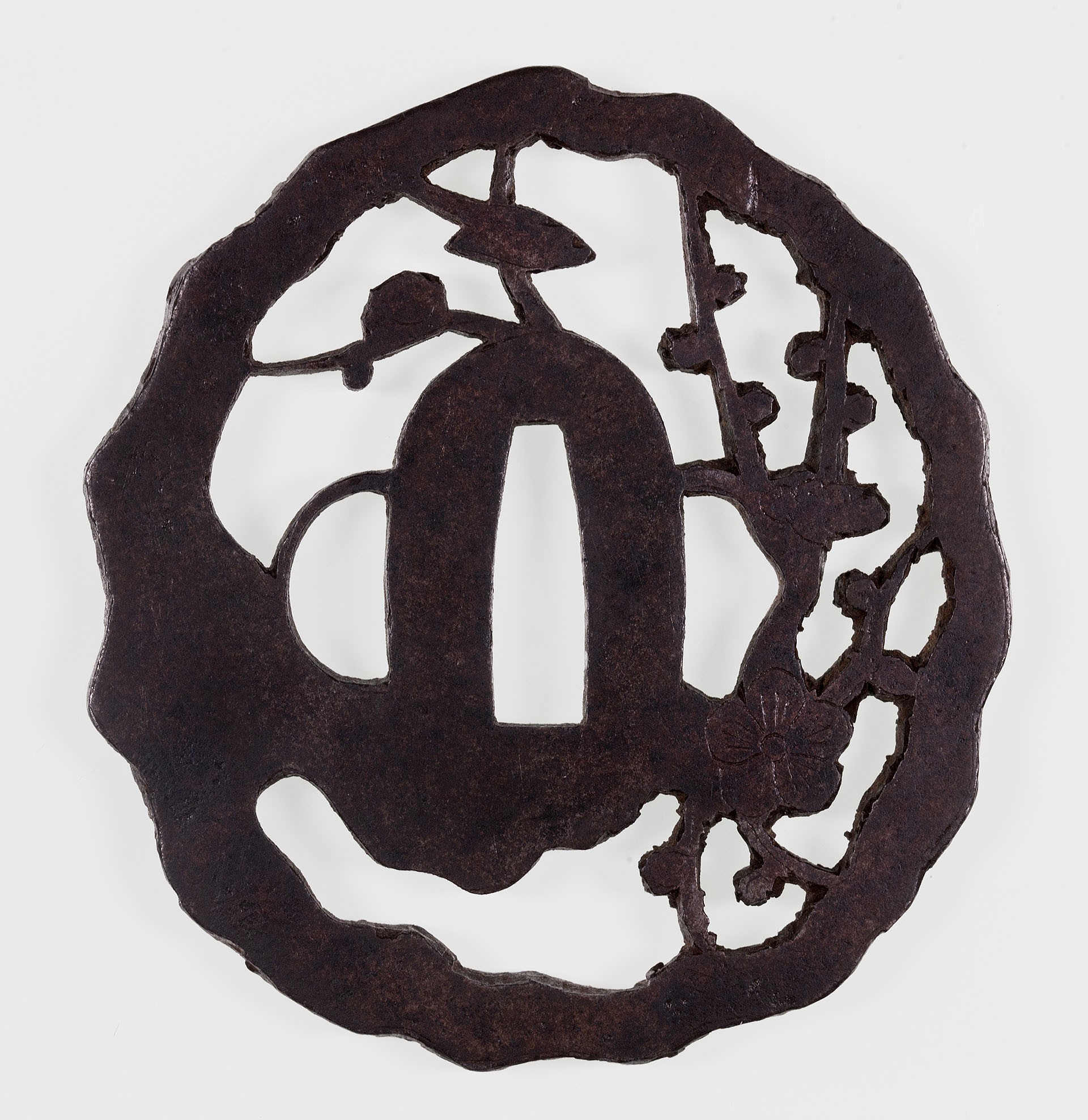

8.45 cm H x 0.53 cm T

This is an Akasaka or Higo style tsuba with the plum branch and bird motif that was roughed out but never finished. Given the angles at which the hitsuana meet the seppa dai, I’d lean toward Higo, but that’s not really the point. As we’ll see below the blank was worked with a chisel.

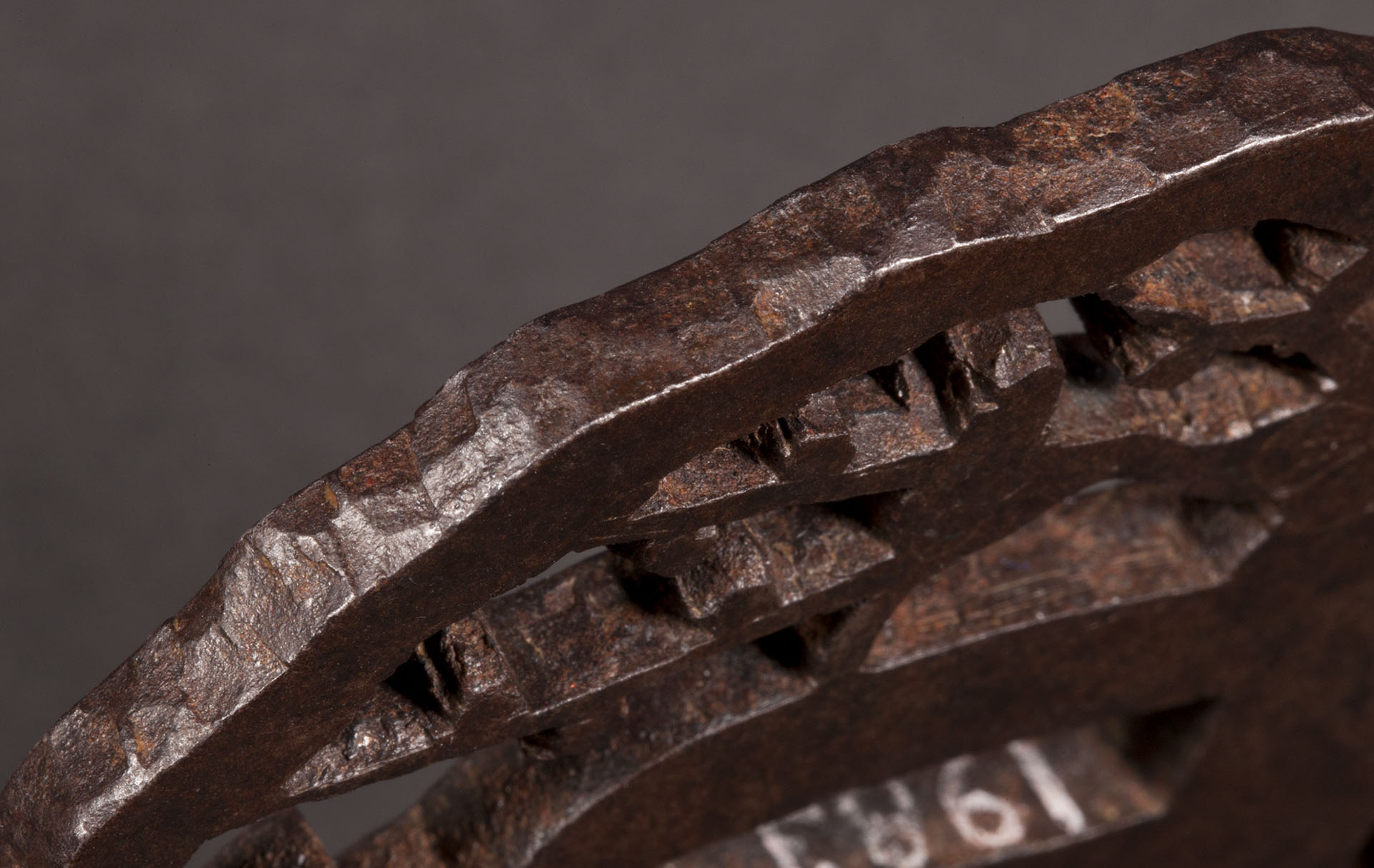

Each chisel stroke is easily seen in this part of the rim.

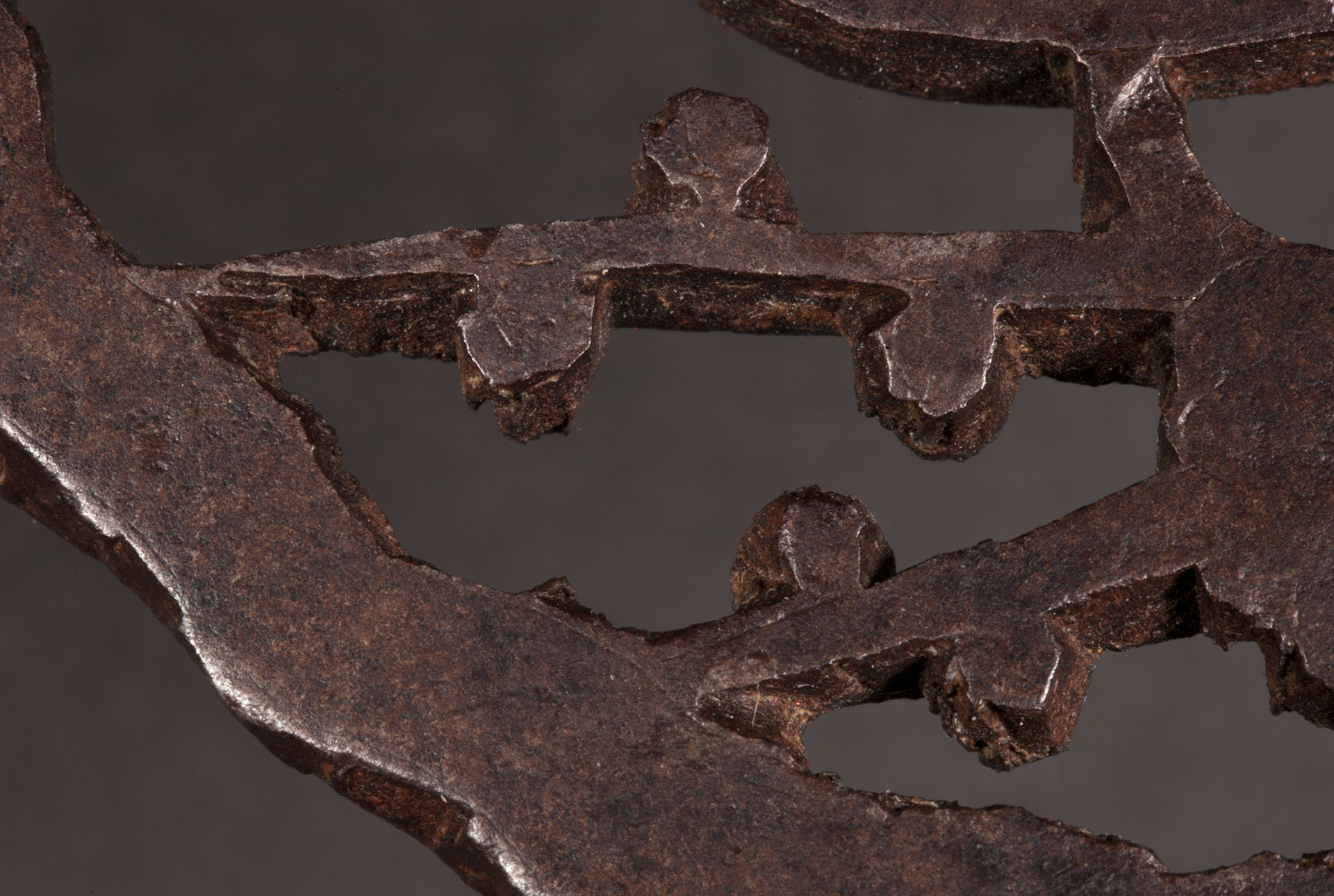

The openwork is chiselled very close to the kebori layout lines defining the shape of the rim and plum branch. Handmade files couldn’t have been inexpensive, so it probably made sense to keep their use to a minimum. Each tooth of a file required a cut with a chisel, so it was probably about as much work to make one as to cut out a tsuba like this.

Given the roughness here it looks like the maker was working quickly and confidently. Opening this up with a jeweler’s type saw would be slow work and hand made blades would probably also have been expensive. I seem to recall reading that they came into use in the Edo period, but don’t remember the source. I’ll have to look for more information. String and abrasive techniques were around well before that, but that would have meant even slower going.

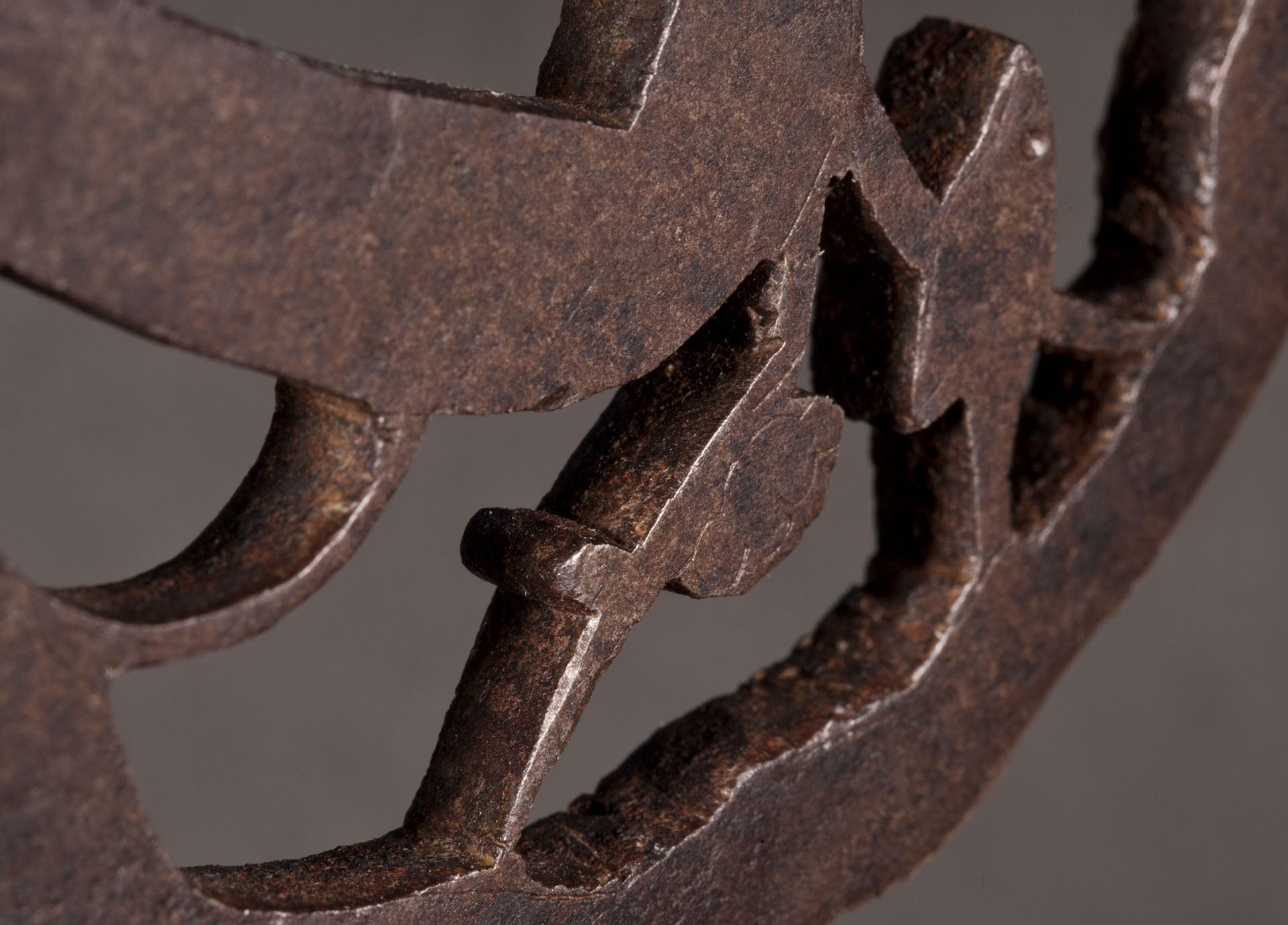

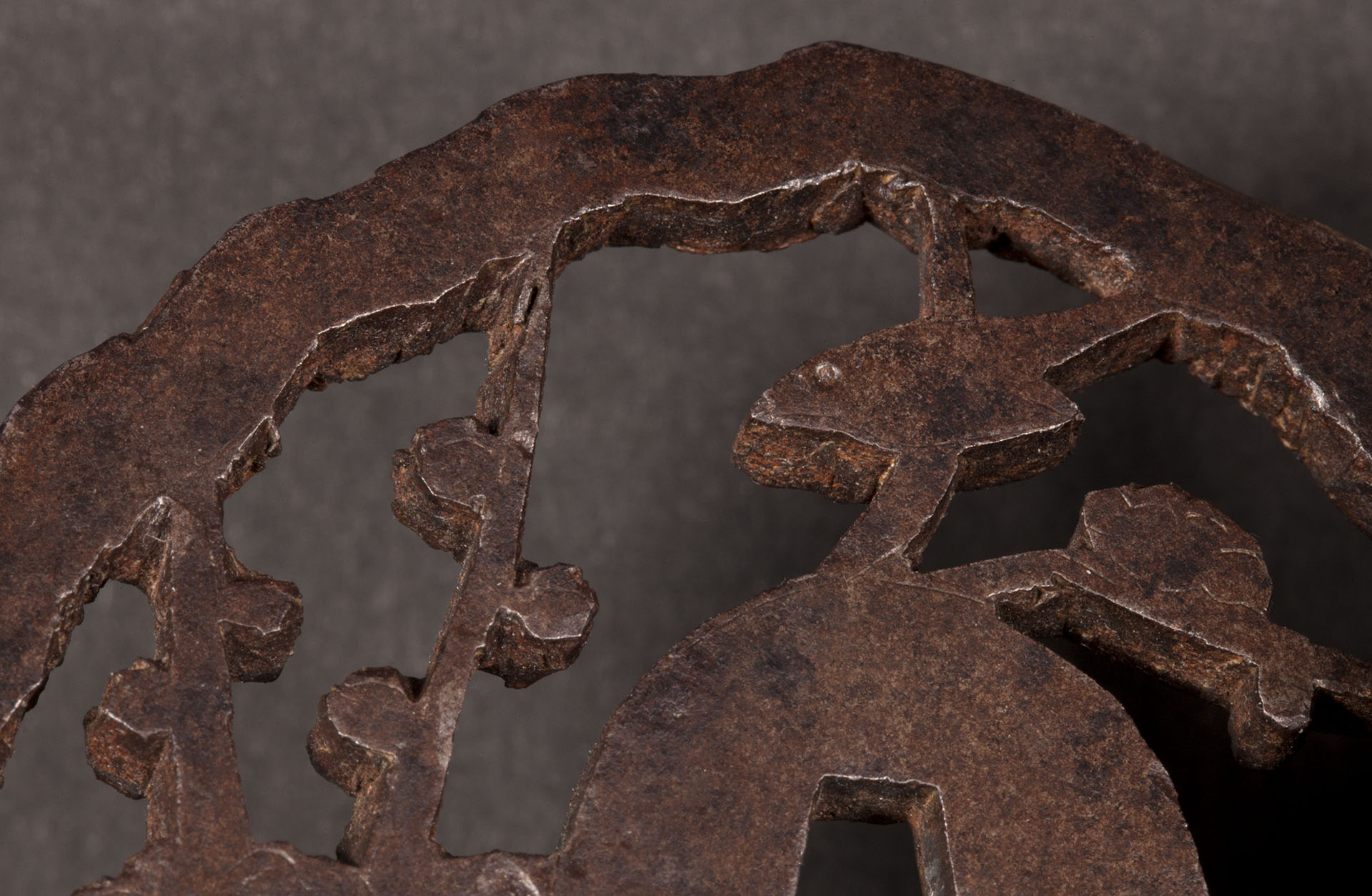

It’s possible that the tip (left) of the upper branch may be the reason the work stopped. The chisel stroke cuts over the centerline of the design. It seems like that could be closed back up without much trouble, but maybe that would be asking for headaches later in the process (or from the boss).

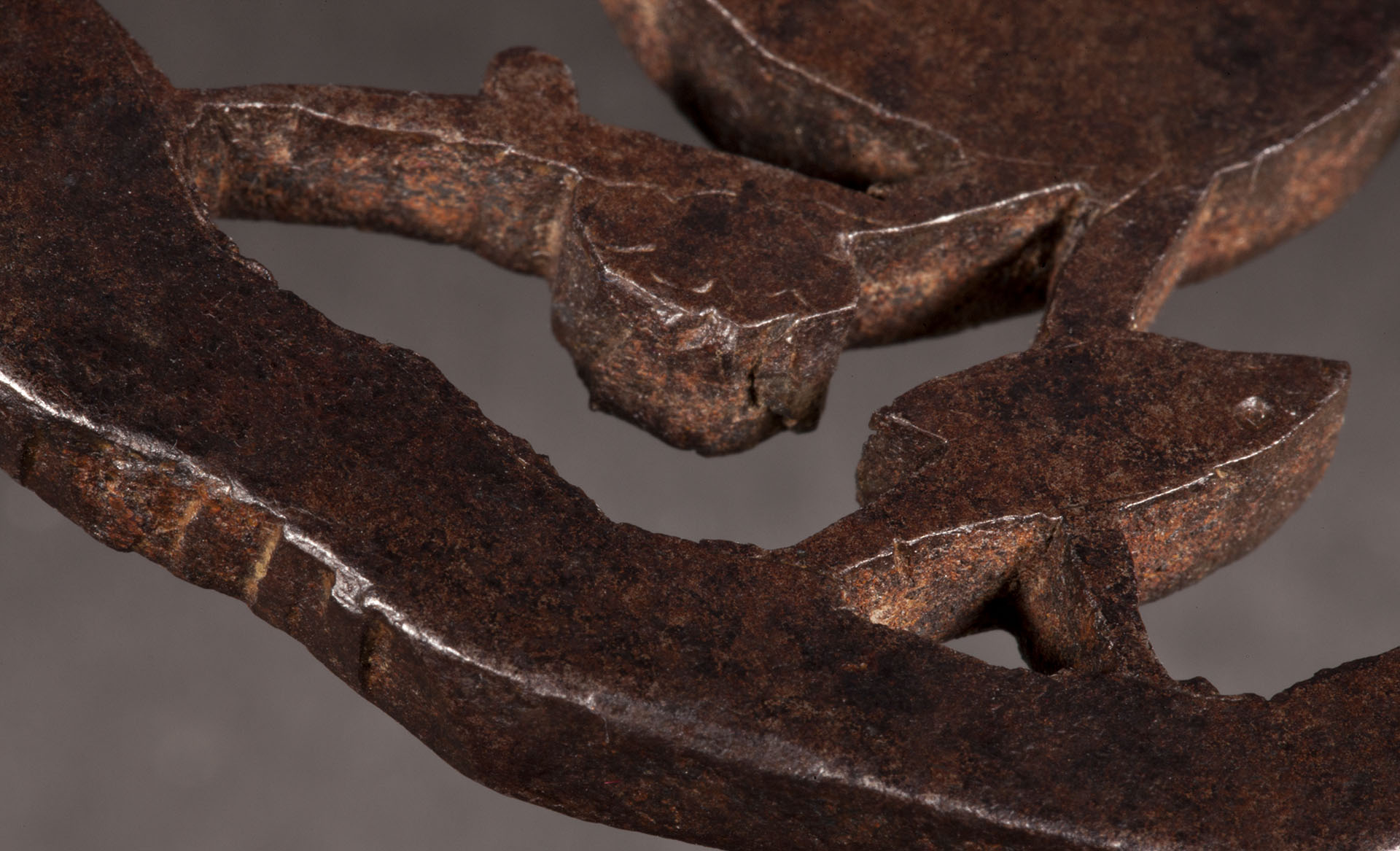

At the right side here there openwork has been refined beyond the rough chiselling. It looks like it may have been scraped down. Comments from metalworkers are welcomed.

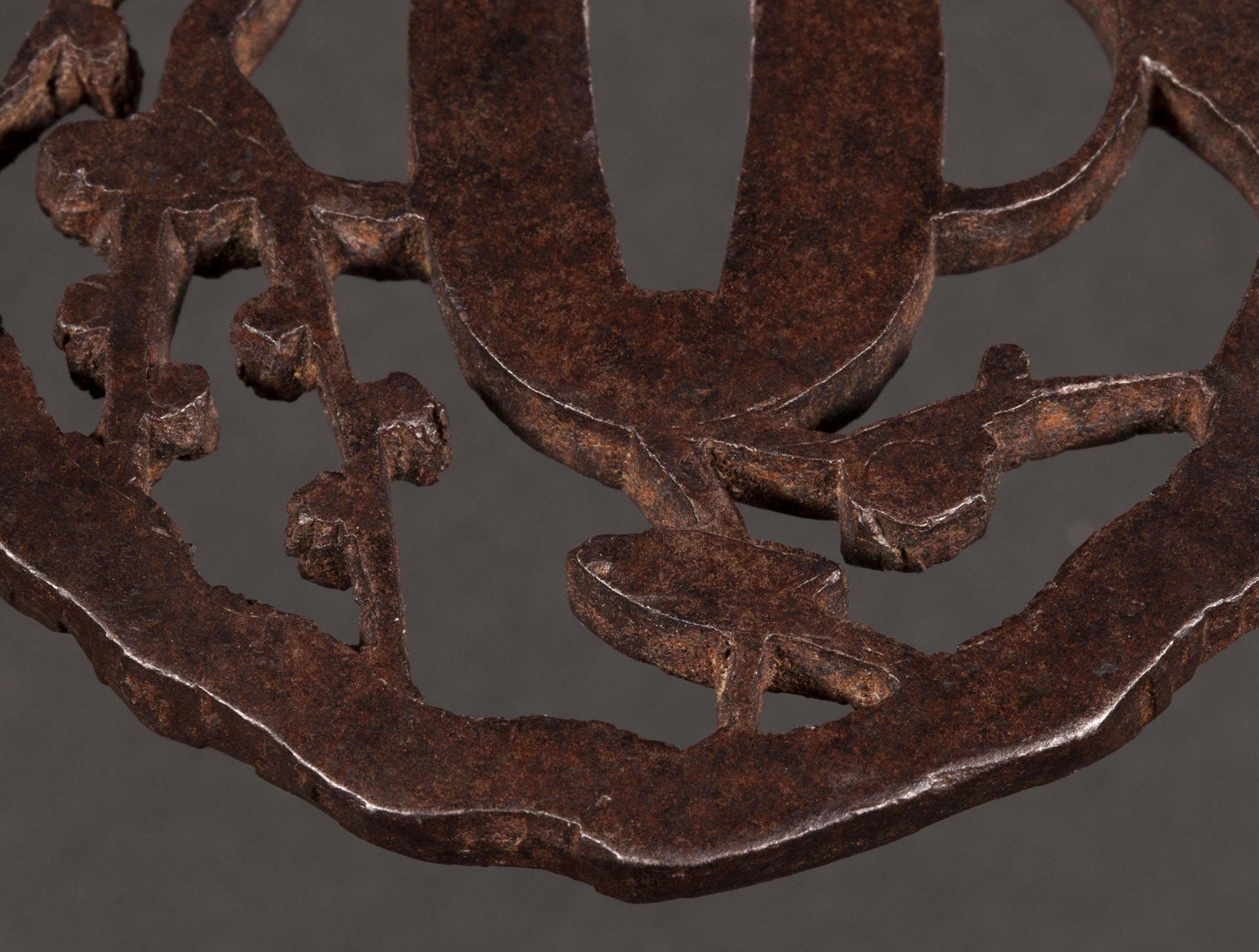

It’s interesting that work that’s quite rough is next to spots that are almost finished instead of working everything uniformly from the rough state. The nakago ana, seppa dai and hitsuana were “cast in stone” early in the process.

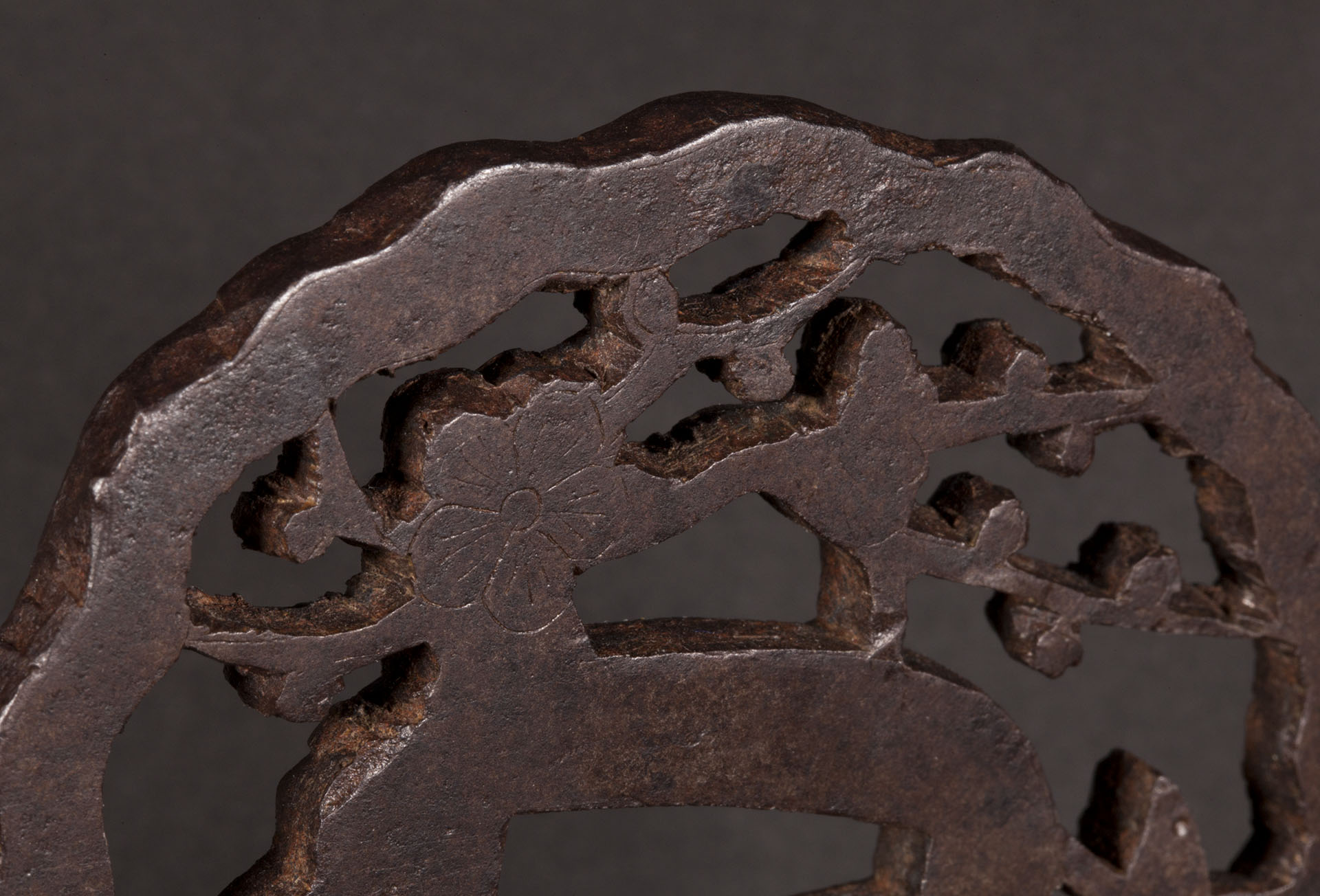

There are some coarse-ish apparent file marks visible in the most finished section, but they aren’t showing well with either the macro setup or microscope. I wonder if the rim was going to be finished off with a circular cross section or left flat. Interesting choice to have refined the branch tip to that point while the rim is still rough.

I found an interesting video on a likely process for making early files. It’s not about Japanese technique, but from what I’ve seen the methods were probably similar (and the production values here are better).

His whole project on recreating the antikythera mechanism with period methods is well worth checking out. Amazing stuff.

Thanks to Fred G for the subject tsuba.
